Feelworld S7 SDI / HDMI High Brightness Camera Field Touchscreen Monitor (7″)

Perfect 4K SDI Monitoring

Manytimes, 4K camcorder are used on-site shooting, while director often use 2K monitor for monitoring. Using 4x3G-SDI is not convenient in practical applications and not accepted. FEELWORLD release the first 7-inch 12G-SDI field monitor. With it, you can reduces system complexity in a 4K workflow. Instead of 4 x 3G-SDI cables to get 4K video image, you only need a single 12G-SDI, and get rid of the awkward situation of monitoring 2K while shooting 4K.

HDMI and SDI Cross Conversion，Easy to Handle Various Application

S7 built-in signal cross conversion, allows you to convert HDMI to SDI signal or SDI to HDMI signal. You can easy to convert signals and needn’t the additional converters. Can be used for various broadcasting and live production.

Note: To use signal cross conversion, please set HDMI OUT as”Display”(enter main menu–System–Source–Output Source–HDMI OUT–Display)

12G-SDI High Speed Transmission

Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.

Professional Broadcast Quality

S7 can not only handle handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI sources, but also simultaneously loop-out high quality broadcast video images, providing you the perfect future proof monitoring solution and bringing the best quality possible and a fluid smooth viewing experience!

7-inch Full HD Screen

Clearly checking and capture every nuance

With extremely high resolution 7-inch IPS panel，a wider field of view and clearly present more detailed image. 1.07B color provides a richer range of colors. 160 ° wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking.

Professional CalMAN Software Calibration, DCI-P3 Cinema Color Gamut

Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction.Plus, S7 also covers 94.9% DCI-P3 film-grade color gamut, better meet the visual experience.

1600nits, Visible in Sunlight

High brightness 1600nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.

Rugged Aluminium Housing

Adopts CNC aluminium housing, durable and portable, suitable for various shooting environment.

Custom Shortcut Keys

On the top of S7 comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

Sensitive Touch Screen Control

The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.

Full Range of Auxiliary Functions

Load Custom 3D LUTs，Preview Filming Look in Field Shooting

Support to load 32 custom LUTs

The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. S7 allows you to load internally up to 32 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

3D LUT Loop-out

HDMI and 3G-SDI can output the video or image with 3D LUT effect. When you are live streaming, you can connect the S7 output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.

Note: To use HDMI with LUT output, you need to set the HDMI output to “display” (enter main menu–System–Source–Output Source–HDMI OUT–Display)

HDR Monitoring

What you see is what you get

When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

Accurate waveform monitoring

Save your budget

Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. S7 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

Up to 16-channel Audio Meter Level

S7 can de-embedded audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels,8 channels, 16 channels audio meters display . You also can move it horizontal or vertical position , and don’ worry cover the image.

12G-SDI & 4K HDMI Input and Output

Equipped with 12G-SDI and 4K HDMI inputs and outputs, support up to 4096×2160/60p &3840×2160/60p signal, compatible with professional camcorder and the latest DSLR cameras on the market. In addition, S7 also comes with a 3G-SDI output and provide a 3.5mm headphone jack to monitor audio.

3-color TALLY Light, Enhance Team Cooperation

S7 including tally light, it can display in red, green or yellow Tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher’s preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

Built-in Cooler

Built-in cooler, don’t worry the monitor work for long time.

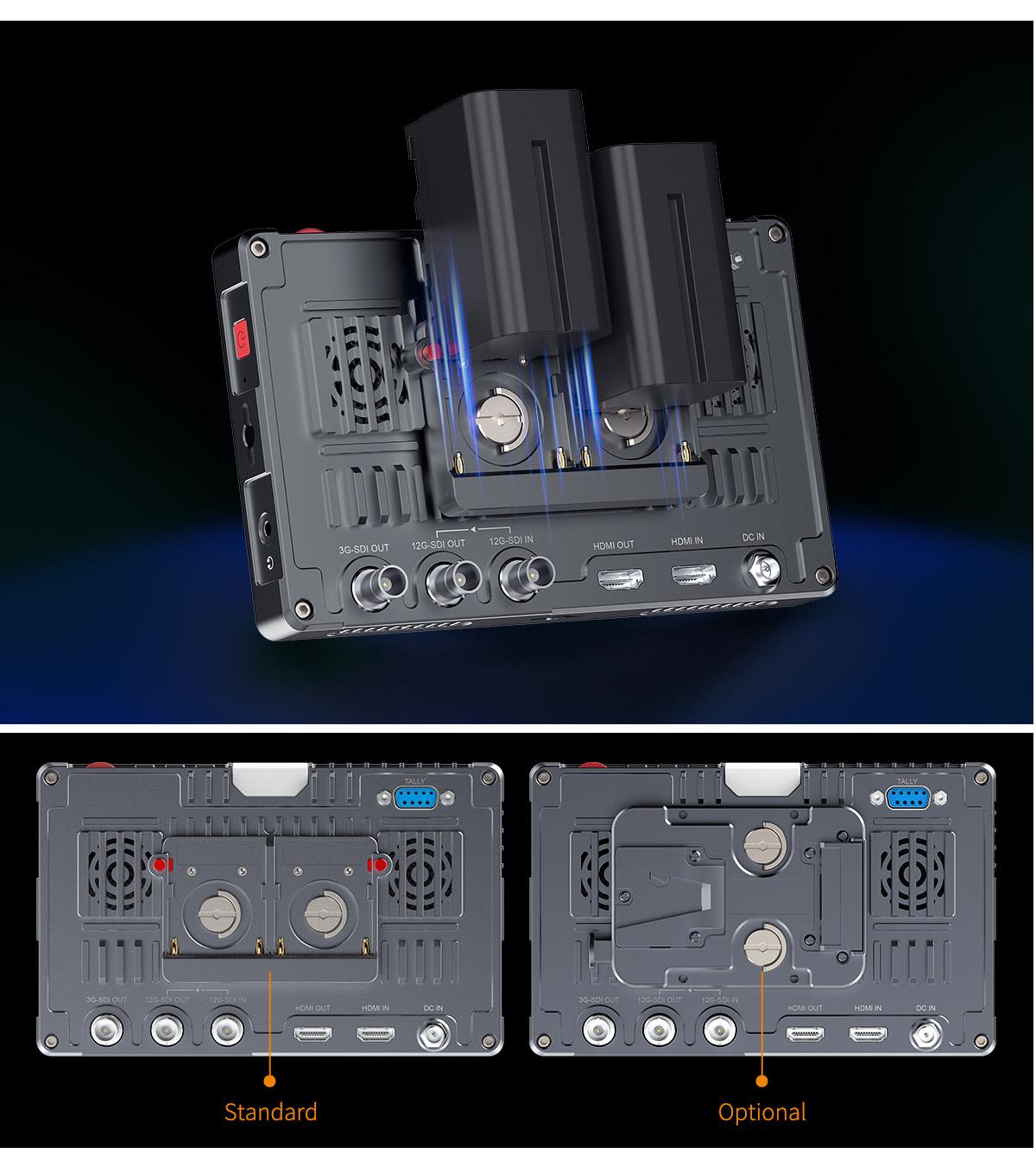

Flexible Power Supply,Long-lasting Power for Shooting

You can connect to DC power input to get continuous power or use the standard F970 dual battery plate to install NP-F series battery for mobile application. Install one F970 battery (6600mah) last for about 3 hours. The upper right corner of monitor will display battery level after the battery installed. two batteries are installed at the same time, when one is running low, you can quickly switch to the other one without worrying about losing power midway. The V-mount battery plate is for optional.

Note: the battery not including, please purchase separately. Higher capacity (working time) will be longer

11 Languages Supporting

S7 built-in up to 11 languages, that means S7 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

Multiple Mounting Points, Meet Different Need of Monitoring

The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right side, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

Mini Hot Shoe Mount Adapter

The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
